Fill the Room with Sound, Not Equipment with the MartinLogan's Variable Aperture System

There has always been a quiet tension at the heart of high-end distributed audio. Homeowners and designers want rich, full-range sound throughout the house, but they don't want to look at it. Large grilles, bulky in-ceiling subwoofers and the visual clutter of a dozen mismatched openings have long been the price of serious in-ceiling performance. MartinLogan's new Variable Aperture System (VAS) sets out to end that compromise. It delivers high-output, full-range performance through apertures as small as 3 inches — openings that sit comfortably alongside standard recessed lighting and effectively disappear into the ceiling plane.

A New Approach to Distributed Audio

The premise behind VAS is simple to state and difficult to engineer: deliver consistent, high-quality bass without the visual footprint that normally comes with it. MartinLogan's answer is to move the heavy lifting above the ceiling, out of sight, and vent the sound through a precision opening that matches the rest of your architectural lighting.

The result is a soundstage that fills the room while the hardware stays hidden. As MartinLogan puts it, the goal is to "fill the room with sound, not equipment" — and the system is built around exactly that idea.

"Last-Inch" Precision for Real-World Installs

Anyone who has run a custom install knows the frustration of a ceiling plan that shifts mid-project. Joist locations, HVAC runs and last-minute design changes can turn a clean layout into a re-ordering headache. VAS is engineered specifically for that reality.

Field-adjustable port offset. The port can be set to Left, Centre or Right at any time, from a single SKU. If a client changes their mind, there's no need to remove the speaker — you simply adjust the port and move on.

Interchangeable trim sizes. Because the trim kits are interchangeable, you can pivot from 3" to 3.5" or 4" just by ordering a different trim kit. Everything above the ceiling surface stays the same across every VAS SKU.

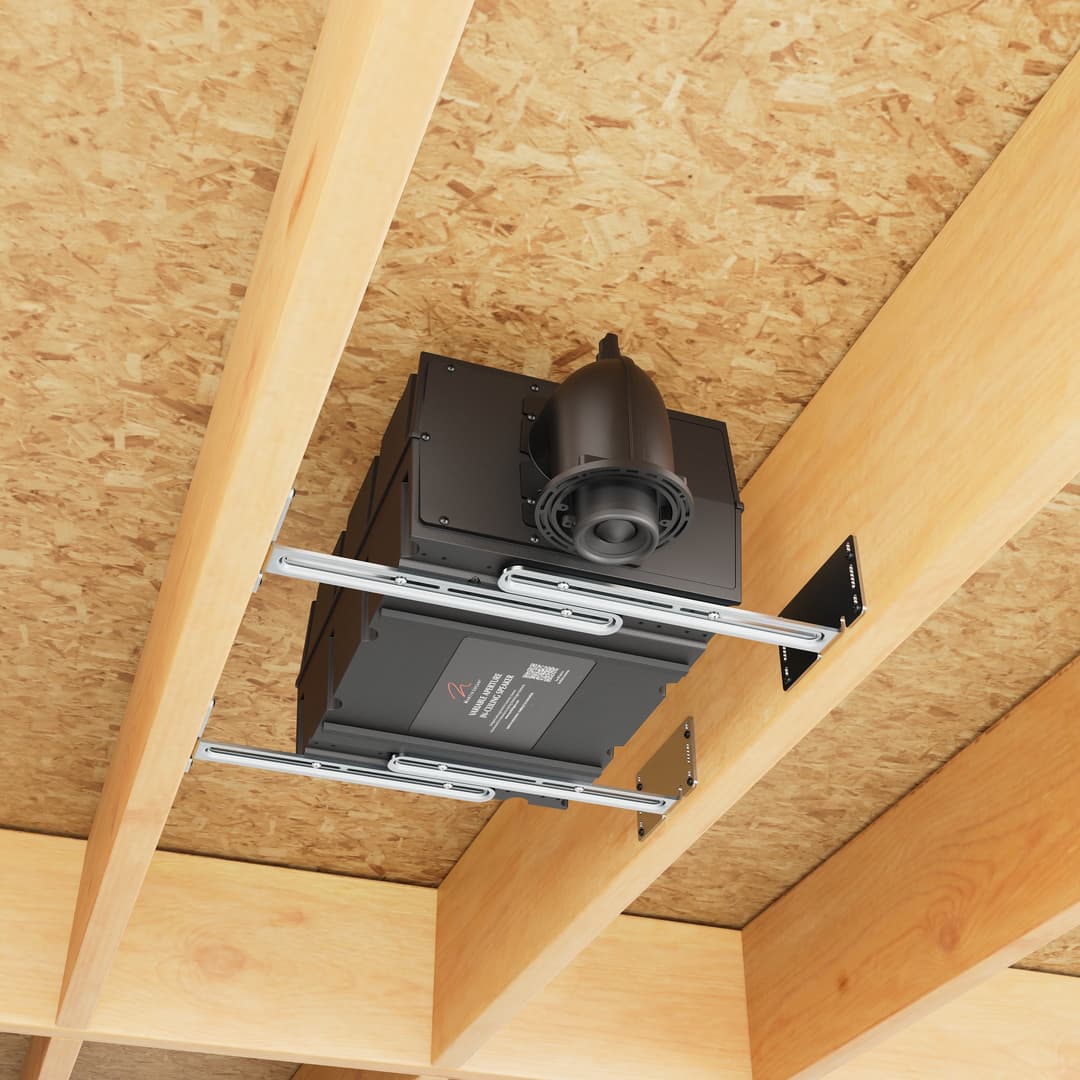

Mounting flexibility. Adjustable galvanised steel brackets support floor joist spacing from 12" to 24" on centre, giving the alignment precision needed to line up perfectly with the lighting grid even when the structure is fighting you for space.

The pay-off is a system with the flexibility of a fully custom solution and the simplicity of a two-SKU inventory.

38 Configurable Looks

Customisation is where VAS becomes genuinely clever. Order the Speaker or Subwoofer in your preferred grille size, and the box includes three trim styles plus both round and square grilles:

• Seamless / Mud-In (drywall only) — the trim ring is eliminated entirely so the ceiling surface meets the grille edge, for the ultimate minimalist finish.
• Minimal Trim Ring (all surfaces) — a discreet, low-profile ring that mimics the look of high-end recessed lighting.
• Wide Trim Ring (all surfaces) — a traditional flange that matches standard architectural "can" lights.

All trim and grilles are paintable, so they can be finished to match any ceiling. Between three trim styles, two grille shapes and two height profiles, just three speaker SKUs deliver 36 distinct looks. Add the Subwoofer's vent options and you reach 38 total looks — from only four sub SKUs.

For genuinely stealthy concealment, the VA Subwoofer can be fitted with a specialised port tube and vent-style trim that disguises the bass output as a standard HVAC vent. Two styles are included: a Minimalist Vent (a sleek rectangular outline finished with your own ceiling material) and an Open Vent (a classic rectangular opening that reads as an air diffuser, left black or painted to match).

Two Models, One Visual Language

The range is streamlined into two primary configurations that share the same visual DNA.

• Variable Aperture Speaker — the full-range solution. A specialised 2" high-output, wide-bandwidth aluminium driver handles the critical midrange and highs, delivering vocal realism and a sense of scale that belies the opening size. Low frequencies come from dual, balanced 5.5" woofers in a force-cancelling configuration — mechanical vibration is cancelled at the source, so energy goes into the room as clean bass while the ceiling stays quiet. Frequency response runs 40Hz–20kHz.
• Variable Aperture Subwoofer — dedicated low-end authority. This model drops the midrange/HF driver and focuses entirely on bass, with beefed-up dual 5.5" drivers, higher power handling and specialised voice coils. The whole internal volume is optimised for air movement, giving the punch of a much larger sub through a discrete opening (32Hz–150Hz). Crucially, it uses the exact same aperture options as the Speaker, so you can reinforce the low end of any room while keeping a perfectly symmetrical ceiling plan.

Built to Integrate

VAS is engineered to work seamlessly with the MartinLogan power ecosystem. Custom DSP presets developed for the MP500 V2 and MDA8/MDA16 amplifiers optimise sound quality and allow the speakers to be driven safely at higher volumes than conventional amplification permits. MartinLogan amplifiers can drive up to two speakers per channel, and the MP500 V2 can power up to four VA Subwoofers from a single 1U rack space.

For installers running third-party gear, the standard 8-ohm impedance keeps VAS fully compatible with a wide range of high-performance amplifiers.

The Bottom Line

The Variable Aperture System is, at heart, a solution to an old problem: how to get world-class sound into a room without imposing on its design. By hiding the bass engine above the ceiling, offering field-adjustable precision and reducing a vast range of finishes down to a tiny SKU count, MartinLogan has made it genuinely easy to deliver high-fidelity audio that respects the space it lives in.

Luxury, after all, is often what you don't see.
